5G CPE Wi-Fi Router

Y510G 5G Indoor CPE wireless router with sim card slot Dual band Gigabit router wifi6

Y510G 5G Indoor CPE wireless router with sim card slot Dual band Gigabit router wifi6

Product description: Y510G 5G Indoor CPE wireless router with sim card slot Dual band Gigabit router wifi6. Y510G is a highly advanced 5G indoor multi-service product solution specifically designed to meet integrated data, and 802.11b/g/n/ac dual bands Wi-Fi access needs for residential, business and enterprise users. The product supports advanced Gigabit networking and dual bands Wi-Fi AP functionalities. It enable
INQUIRY

Y510G is a highly advanced 5G indoor multi-service product solution specifically designed to meet integrated data, and

802.11b/g/n/ac dual bands Wi-Fi access needs for residential, business and enterprise users. The product supports advanced Gigabit networking and dual bands Wi-Fi AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity.

Frequency Band

5G NR: N1/N3/N8/N28/N41/N77/N78/N79

4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28B, B32 can be customized;

4G TDD: B34/B38/B39/B40/B41 5G NR: 1.25Gbps (UL), 2.45 Gbps(DL) TDD/FDD LTE: Category 12 with 450Mbps( DL)

TDD/FDD LTE: Category 13 with 150Mbps( UL)

Cheap Wireless 5g Modem Rj45 Home 4g Idu Lte Outdoor Cpe Sim Slot 5g Cpe Router. Wi-Fi 6 Router MU-MIMO Rj45

Spec	Description
Chipset	5G/LTE: UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz
Chipset	Wi-Fi: Realtek 8198D
RF standard	5G NR (3GPP Release 15) TDD-LTE/FDD-LTE
Memory	ROM: 2Gb
Memory	RAM: 4Gb DDR3
Indictors	1. Power 2. Wi-Fi Switch Status 3. 5G Internet 4. Signal Bar Indicator
Buttons	1. Power ON/OFF Button 2. Reset Key

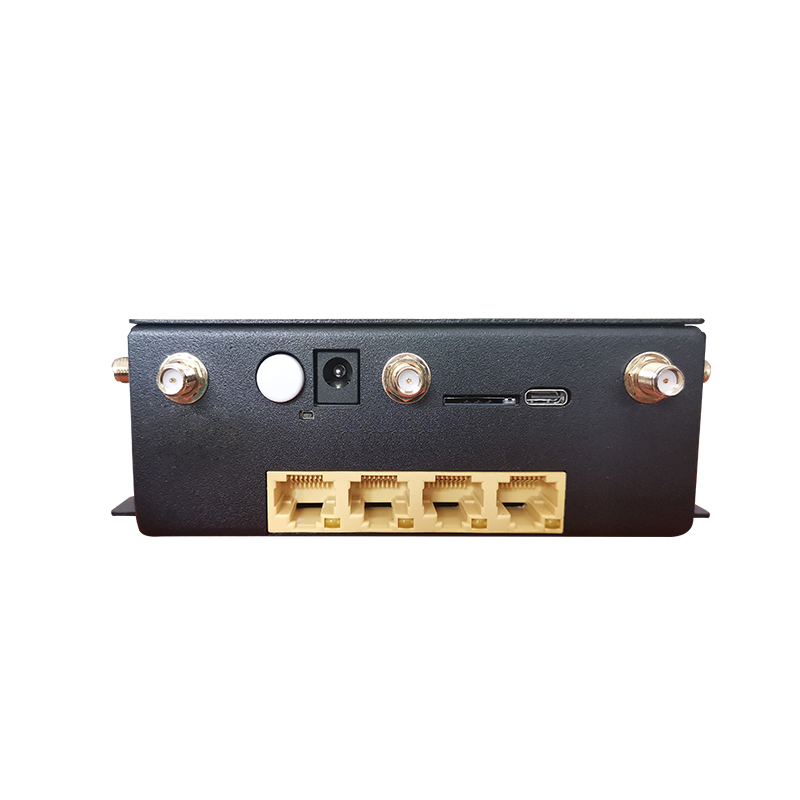

Interfaces	1. GE LAN Port * 4 2. SIM Slot * 1 (3FF) 3. DC Socket 4. TYPE_C USB3.1 for Manufacture
LAN/WAN	GE Port * 4, (Currently DHCP/STATIC mode).
Power Supply	AC100V~240V,50Hz~60Hz DC 12V DC±10% 2A
Power Consumption	< 24W
Dimensions	140mm110mm45mm
Weight	650g
Feature	Capability
Support Bands	5G NR: N1/N3/N8/N28/N41/N77/N78/N79
	4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28B, B32 can be customized;
	4G TDD: B34/B38/B39/B40/B41
ENDC	B3/B7/B8/B20-N1 B1/B20-N3 B1/B7-N8 B1/B3-N28 B3/B39-N41 B1/B3-N77 B1/B3/B5/B7/B8/B20/B28-N78 B3/B39/B40-N79
3CC	CA Combination (CA Maximum Aggregated Bandwidth, MHz) B40+B40+B40(50) B41+B41+B41(60) B39+B39+B41(50) B39+B41+B41(60) B1+B3+B3/B5/B8/B20/B28(50) B1+B3+B7/B32(60) B1+B7+B8/B20(50) B1+B8+B20(45) B1+B20+B32(50) B3+B3+B7/B8(50) B3+B3+B20(40) B3+B7+B20/B28(50) B3+B7+B7(60) B3+B8+B20(45) B3+B20+B32(50) B7+B7+B20(50)
CA (Inter/Intra 2CA)	2CC DL intra-band contiguous: 38C, 39C, 40C, 41C, 3C 2CC DL inter-band: 39A-41A, 41A-39A, 3A-41A, 8A-41A, 1A-3A, 3A-1A 2CC UL intra-band contiguous: 38C, 39C, 40C, 41C, 3C
MIMO	5G DL MIMO 44, UL MIMO 11 LTE: MIMO 22 WIFI： MIMO 22(5G) MIMO 2*2(2.4G)
5G/4G TX/RX	2T4R/1T2R
Output Power@25℃	5G NR: 23+-2dBm LTE: 23+-2dBm
5G/4G Antenna	4 external 5G antennas 2 external 4G antennas
5G/4G Antenna Gain	5 dB
Wi-Fi Frequency	2.4GHz/5GHz
